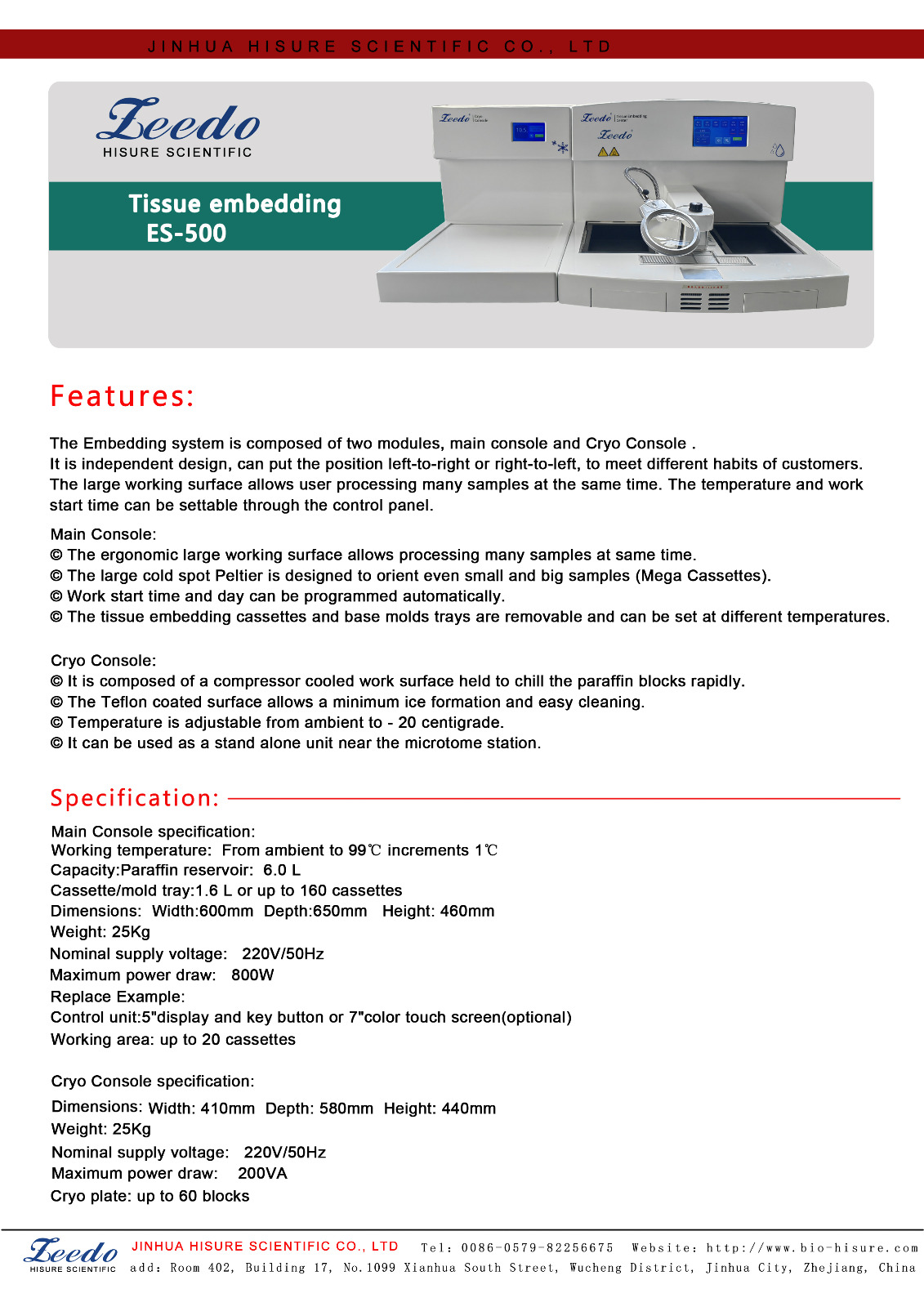

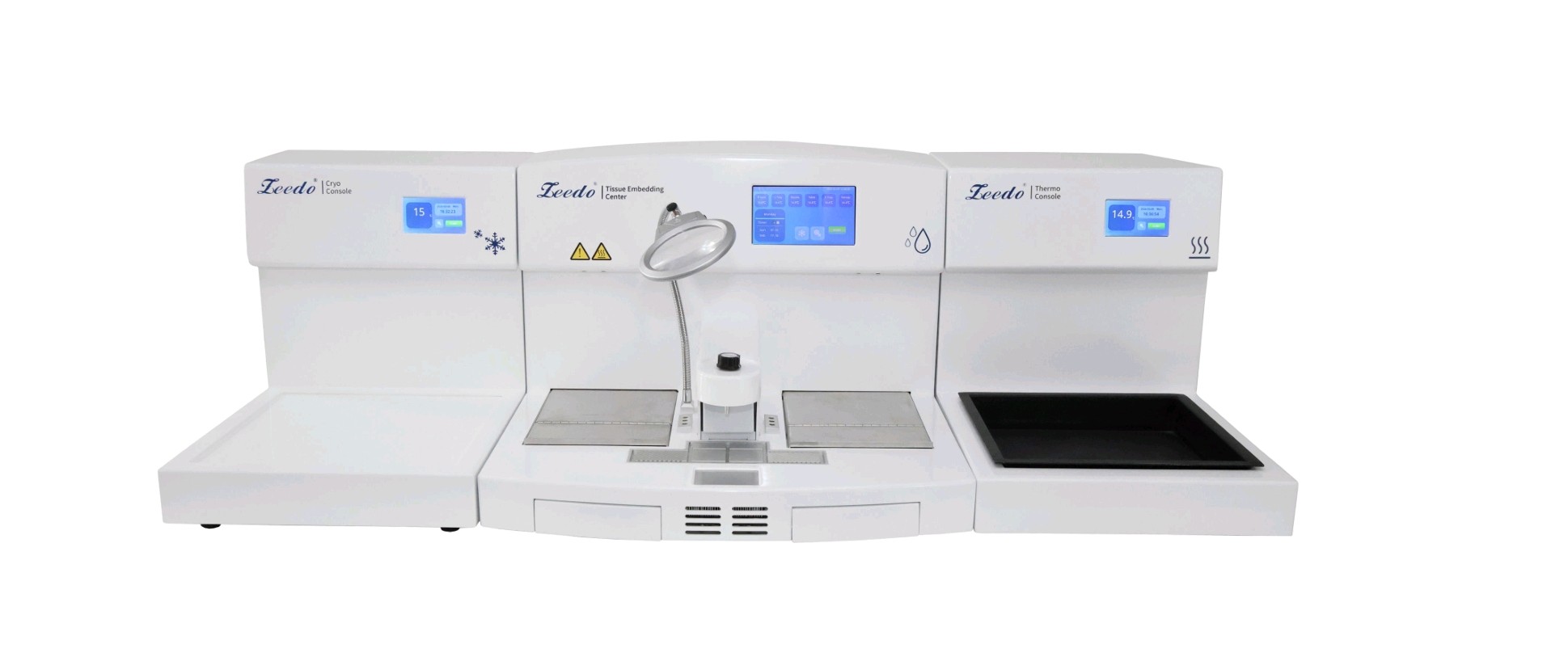

ES500 Main Console & Cryo Console
Main Console:
- Wax cylinder capacity: 6L
- Temperature control of wax cylinder, paraffin dispenser, working surface, left and right tank, and tweezers block: 0-99℃
- Environmental temperature: 0℃~45℃
- Removable left and right trays: Approx. 406 cassettes
- Display: 7 inch capacitive LCD touch screen
Cryo Console:
- Cooling temperature setting range: room temperature~-20 ℃
- Power supply voltage: 220V, 50Hz
- Power: 200W
- Environmental temperature: Room temperature

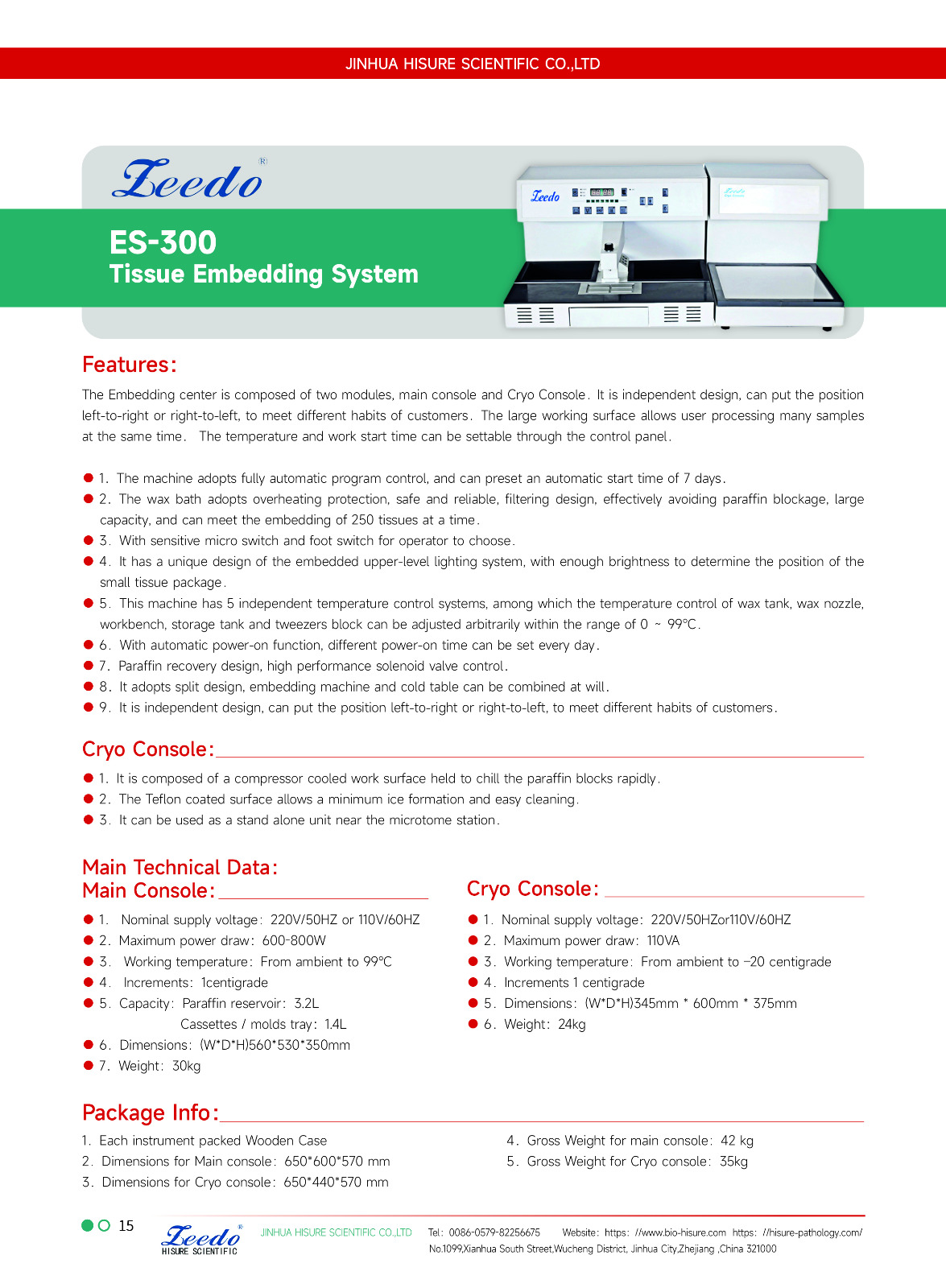

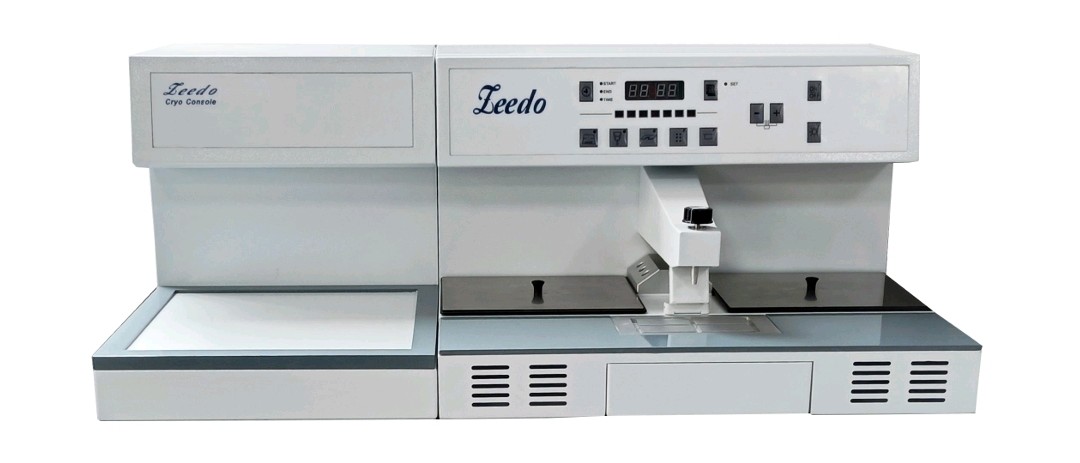

ES300 Tissue Embedding System
Cryo Console:
1. It is composed of a compressor cooled work surface held to chill the paraffin blocks rapidly.
2. The Teflon coated surface allows a minimum ice formation and easy cleaning.
3. It can be used as a standalone unit near the microtome station.
Main Console:
1. Nominal supply voltage: 220V/50HZ or 110V/60HZ
2. Maximum power draw: 600-800W
3. Working temperature: From ambient to 99℃
4. Increments: 1centigrade
5. Capacity: Paraffin reservoir: 3.2L
